Alignment tutorial for 8months mouse brains

In this tutorial, we will demonstrate how to implement 8months mouse brains alignment using 3d-OT and calculate the chamfer distance

Loading package

from lib_3d_OT.utils import *
import scanpy as sc
import numpy as np
import pandas as pd
import torch
from lib_3d_OT.single_modialty import *
import torch.optim as optim
import warnings
warnings.filterwarnings("ignore")

During startup - Warning messages:
1: package ‘methods’ was built under R version 4.3.2
2: package ‘datasets’ was built under R version 4.3.2
3: package ‘utils’ was built under R version 4.3.2
4: package ‘grDevices’ was built under R version 4.3.2
5: package ‘graphics’ was built under R version 4.3.2
6: package ‘stats’ was built under R version 4.3.2
R[write to console]:                    __           __
   ____ ___  _____/ /_  _______/ /_
  / __ `__ \/ ___/ / / / / ___/ __/
 / / / / / / /__/ / /_/ (__  ) /_
/_/ /_/ /_/\___/_/\__,_/____/\__/   version 6.1.1
Type 'citation("mclust")' for citing this R package in publications.

Could not load compiled 3D CUDA chamfer distance

device = torch.device("cuda:1" if torch.cuda.is_available() else "cpu")

Loading and Pre-processing two slices

• First, we need to prepare the single cell spatial data into AnnData objects. AnnData is the standard data class we use in 3d-OT.

• See documentationfor more details if you are unfamiliar, including how to construct AnnData objects from scratch, and how to read data in other formats (csv, mtx, loom, etc.) into AnnData objects.

• dpcais the preprocessing process for reference SLAT

adata1=sc.read_h5ad('/home/dbj/mouse/STARMAPPLUS/8months_disease2.h5ad')
adata2=sc.read_h5ad('/home/dbj/mouse/STARMAPPLUS/8months_disease1.h5ad')
adata2.obs['truth']=adata2.obs['region']
adata1.obs['truth']=adata1.obs['region']
adatalist=[adata1,adata2]
adata1,adata2=dpca(adatalist,n_comps=50,join='inner')

Constructing neighbor graph and training the Pointnet++Encoder

We first build the neighbor graph graph1 of rep1 and train the encoder to get a trained encoder best_model1

set_seed(7)
graph1 = prepare_data(adata2, location="spatial", nb_neighbors=8).to(device)
input_dim1 = graph1.express.shape[-1]
model = extractMODEL(args=None,input_dim=input_dim1)
optimizer = optim.Adam(model.parameters(), lr=0.001)
best_model1, min_loss = train_graph_extractor(graph1, model, optimizer, device,epochs=800)

Epoch 800/800, Loss: 1.533769, Min Loss: 1.534344

Constructing neighbor graph and training the Pointnet++Encoder

We then build the neighbor graph graph2 of rep2 and train the encoder to get a trained encoder best_model2

set_seed(7)
graph2 = prepare_data(adata1, location="spatial", nb_neighbors=8).to(device)
input_dim2 = graph2.express.shape[-1]
model = extractMODEL(args=None,input_dim=input_dim2)
optimizer = optim.Adam(model.parameters(), lr=0.001)
best_model2, min_loss = train_graph_extractor(graph2, model, optimizer, device,epochs=800)

Epoch 800/800, Loss: 1.500054, Min Loss: 1.471720

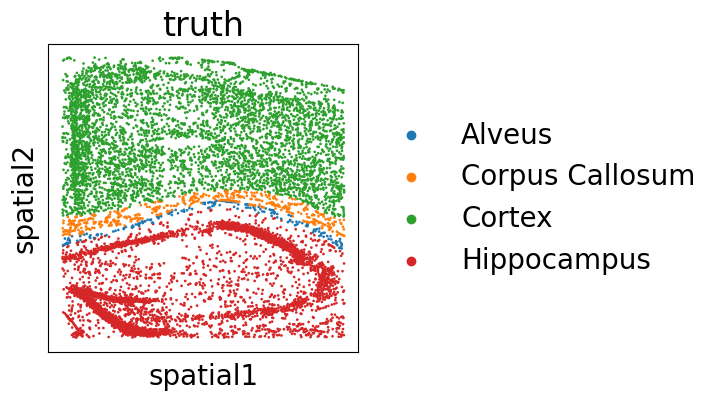

Target alignment slice

import matplotlib.pyplot as plt
import copy
plt.rcParams['figure.figsize'] = (4,4)
plt.rcParams['font.size'] = 20

fig, ax = plt.subplots()
sc.pl.embedding(adata1,basis='spatial',color='truth',size=15,ax=ax)

Source alignment slice

import matplotlib.pyplot as plt
import copy
plt.rcParams['figure.figsize'] = (4,4)
plt.rcParams['font.size'] = 20

fig, ax = plt.subplots()
sc.pl.embedding(adata2,basis='spatial',color='truth',size=15,ax=ax)

Training the optimal transport module

Enter graph1 and graph2 and the two encoders we trained into the optimal transport model

pclouds_list=[graph1,graph2]

input_dim1 = pclouds_list[0].express.shape[-1]
input_dim2 = pclouds_list[1].express.shape[-1]
model = UnifiedModel(input_dim1=input_dim1,input_dim2=input_dim2,simk=5,otk=50,reconk=1,best_encoder1=best_model1,best_encoder2=best_model2)
optimizer = torch.optim.Adam(model.parameters(), lr=0.0001)
lr_lambda = lambda epoch: 1.0 if epoch < 340 else 1.0
scheduler = torch.optim.lr_scheduler.LambdaLR(optimizer, lr_lambda)
args = {
    "backward_dist_weight":1.0,
    "use_smooth_flow":1,
    "smooth_flow_loss_weight":1.0,
    "use_div_flow":1,
    "div_flow_loss_weight":1.0,
    "div_neighbor": 8,
    "lattice_steps": 10,
    "nb_neigh_smooth_flow":32,
}



train(model=model,pcloud_list=pclouds_list,optimizer=optimizer,scheduler=scheduler,device=device,nb_epochs=1,use_corr_conf=False,use_smooth_flow=True,use_div_flow=True,args=args)

Time Pair 0,total_loss: 0.0756,smooth_flow_loss: 0.0459 Target Recon Loss: 0.0000,Div Flow Loss: 0.0296

Visualize and quantify the evaluation of seven region alignment results

• selected_cell_typerepresents the drawn source cell type.

• finaltruth means that the target cell type corresponding to the source cell type that based on the biological understanding, and it is used to obtain the spatial location information of the target cell type and calculate the chamfer distance.

• all_arrow_endsrepresents all aligned flow end positions from source cell type,it is used to calculate the chamfer distance.

• layer_1_pcloud_3D represents the target cell type spatial position information based on biological understanding, and is used to calculate the chamfer distance.

The alignment result of Alveus

from lib_3d_OT.plot import *
all_arrow_ends,layer_1_pcloud_3D=plot_selected_cell_type_flow(pclouds_list, model, device,selected_cell_type='Alveus',finaltruth=['Alveus'],xlim=(-0.1, 1.1),ylim=(-0.1, 1.1),height_scale=1,size=1,alpha=0.4,
    #save_path='/home/dbj/DPLFC/'
)

Number of arrow ends: 213
Layer 1 points count: 186

-Log10(chamfer_distance) as a performance metric for alignment

chamfer_dist = chamfer_distance(all_arrow_ends,layer_1_pcloud_3D)

print(f"chamfer distance: {chamfer_dist}")

chamfer distance: 0.00040478422767053205

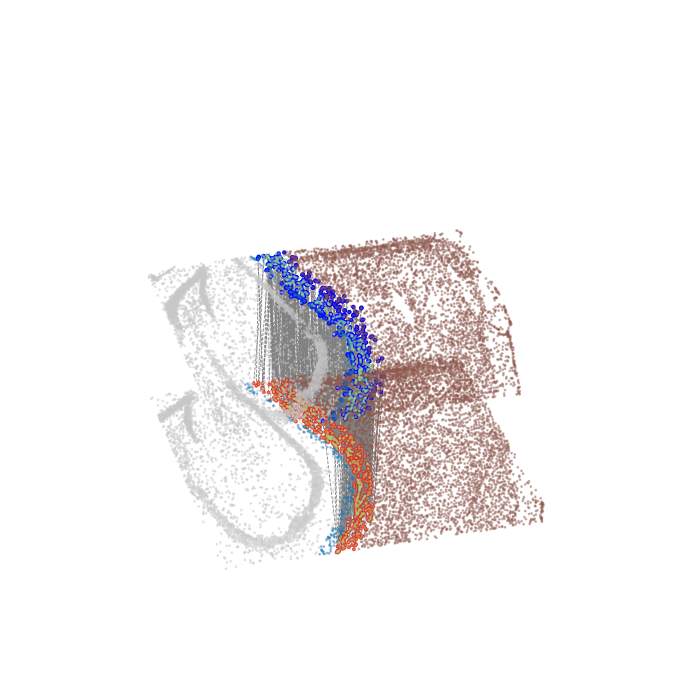

from lib_3d_OT.plot import *
all_arrow_ends,layer_1_pcloud_3D=plot_selected_cell_type_flow(pclouds_list, model, device,selected_cell_type='Corpus Callosum',finaltruth=['Corpus Callosum'],xlim=(-0.1, 1.1),ylim=(-0.1, 1.1),height_scale=1,size=1,alpha=0.4,
    #save_path='/home/dbj/DPLFC/'
)

Number of arrow ends: 654
Layer 1 points count: 467

chamfer_dist = chamfer_distance(all_arrow_ends,layer_1_pcloud_3D)

print(f"chamfer distance: {chamfer_dist}")

chamfer distance: 0.0002835519214628519

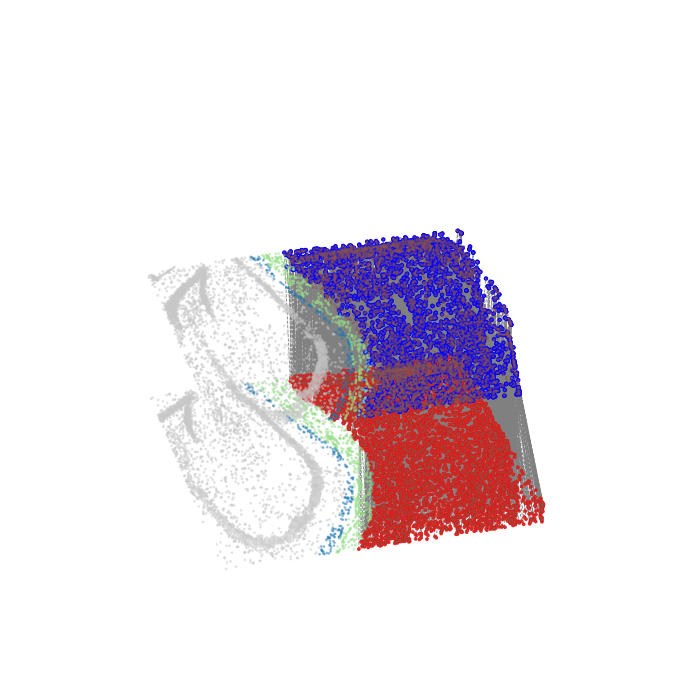

from lib_3d_OT.plot import *
all_arrow_ends,layer_1_pcloud_3D=plot_selected_cell_type_flow(pclouds_list, model, device,selected_cell_type='Cortex',finaltruth=['Cortex'],xlim=(-0.1, 1.1),ylim=(-0.1, 1.1),height_scale=1,size=1,alpha=0.4,
    #save_path='/home/dbj/DPLFC/'
)

Number of arrow ends: 4666
Layer 1 points count: 4399

chamfer_dist = chamfer_distance(all_arrow_ends,layer_1_pcloud_3D)

print(f"chamfer distance: {chamfer_dist}")

chamfer distance: 2.6951444131818508e-05

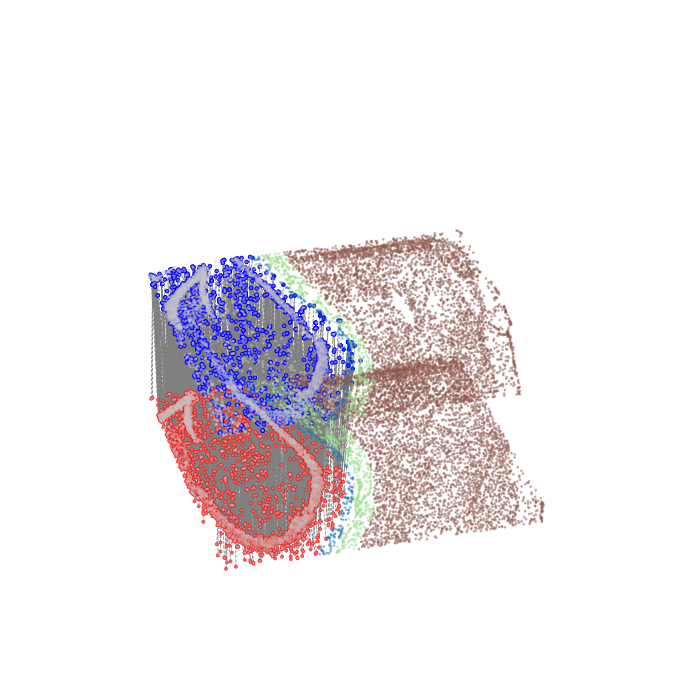

from lib_3d_OT.plot import *
all_arrow_ends,layer_1_pcloud_3D=plot_selected_cell_type_flow(pclouds_list, model, device,selected_cell_type='Hippocampus',finaltruth=['Hippocampus'],xlim=(-0.1, 1.1),ylim=(-0.1, 1.1),height_scale=1,size=1,alpha=0.4,
    #save_path='/home/dbj/DPLFC/'
)

Number of arrow ends: 2653
Layer 1 points count: 3150

chamfer_dist = chamfer_distance(all_arrow_ends,layer_1_pcloud_3D)

print(f"chamfer distance: {chamfer_dist}")

chamfer distance: 6.24529523107703e-05
