Spatial Clustering Demonstration of 12 Slices from the DLPFC Dataset(10xVisium)

We demonstrate how to use 3d-OT to obtain the clustering results of 12 spatial slices from the DLPFC

Loading package

[1]:

from lib_3d_OT.utils import *
import scanpy as sc
import numpy as np
import pandas as pd
import torch
from lib_3d_OT.single_modialty import *
import torch.optim as optim
import warnings
warnings.filterwarnings("ignore")

During startup - Warning messages:
1: package ‘methods’ was built under R version 4.3.2
2: package ‘datasets’ was built under R version 4.3.2
3: package ‘utils’ was built under R version 4.3.2
4: package ‘grDevices’ was built under R version 4.3.2
5: package ‘graphics’ was built under R version 4.3.2
6: package ‘stats’ was built under R version 4.3.2
R[write to console]:                    __           __
   ____ ___  _____/ /_  _______/ /_
  / __ `__ \/ ___/ / / / / ___/ __/
 / / / / / / /__/ / /_/ (__  ) /_
/_/ /_/ /_/\___/_/\__,_/____/\__/   version 6.1.1
Type 'citation("mclust")' for citing this R package in publications.

[ ]:

device = torch.device("cuda:1" if torch.cuda.is_available() else "cpu")

Loading and Pre-processing 151674 slice data

We use SCANPY package to select Top3000 HVGs and perform standard data processing,The standard processed expression matrix adata.X is used as input

[3]:

adata=sc.read_visium('/home/dbj/mouse/DLPFC/DLPFC/151674/')
adata.var_names_make_unique()
sc.pp.highly_variable_genes(adata, n_top_genes=3000, flavor='seurat_v3')
adata = adata[:,adata.var.highly_variable]
sc.pp.normalize_total(adata, inplace=True)
sc.pp.log1p(adata)
sc.pp.scale(adata, zero_center=False, max_value=10)

truth = pd.read_csv('/home/dbj/mouse/vision/spatial/DLPFC_annotations/151674_truth.csv', sep='\t', index_col=0)
adata.obs['truth'] = truth.iloc[:,0]
adata = adata[~adata.obs['truth'].isna(), :]
adata.obsm['feat']=adata.X

Ground truth of 151674 slice

[4]:

sc.pl.spatial(adata, img_key="hires", color="truth", alpha=0.5, size=1.3)

../_images/Single_Omics_spatial_domain_identification_DLPFC12slices_7_0.png

Constructing neighbor graph and training Pointnet++Encoder

[5]:

set_seed(7)
graph = prepare_data(adata, location="spatial", nb_neighbors=16).to(device)
input_dim1 = graph.express.shape[-1]
model = extractMODEL(args=None,input_dim=input_dim1)
optimizer = optim.Adam(model.parameters(), lr=0.001)
best_model, min_loss = train_graph_extractor(graph, model, optimizer, device,epochs=1150)

Epoch 1150/1150, Loss: 0.727270, Min Loss: 0.727269

Obtain the reconstruction matrix `decoded_features`

[6]:

with torch.no_grad():
    model.eval()
    z= model.get_features(graph)
    decoded_features = model.decode(z)
    gene_expression_matrix = decoded_features.cpu().squeeze(0).detach().numpy()
adata.obsm['3d-OT']=gene_expression_matrix

Clustering with mclust ,Clustering results can be found in `adata.obs['3d-OT']`

[ ]:

clustering(adata, n_clusters=7, radius=50, key='3d-OT', method='mclust', refinement=True,random=14,n_comp=40)

Using 3d-OT representation for clustering...
fitting ...
  |======================================================================| 100%

151674 clustering results

[8]:

sc.pl.spatial(adata, color='3d-OT', img_key='hires', alpha=0.5, size=1.3)

../_images/Single_Omics_spatial_domain_identification_DLPFC12slices_15_0.png

Quantitative evaluation of clustering performance

[9]:

from sklearn.metrics import adjusted_rand_score,normalized_mutual_info_score
ARI = adjusted_rand_score(adata.obs['truth'], adata.obs['3d-OT'])
NMI = normalized_mutual_info_score(adata.obs['truth'], adata.obs['3d-OT'])
ARI,NMI

[9]:

(0.722191434362515, 0.7656380326054507)

151673 slice

[10]:

adata=sc.read_visium('/home/dbj/mouse/DLPFC/DLPFC/151673/')
adata.var_names_make_unique()
sc.pp.highly_variable_genes(adata, n_top_genes=3000, flavor='seurat_v3')
adata = adata[:,adata.var.highly_variable]
sc.pp.normalize_total(adata, inplace=True)
sc.pp.log1p(adata)
sc.pp.scale(adata, zero_center=False, max_value=10)

truth = pd.read_csv('/home/dbj/mouse/vision/spatial/DLPFC_annotations/151673_truth.csv', sep='\t', index_col=0)
adata.obs['truth'] = truth.iloc[:,0]
adata = adata[~adata.obs['truth'].isna(), :]
adata.obsm['feat']=adata.X

[11]:

sc.pl.spatial(adata, img_key="hires", color="truth", alpha=0.5, size=1.3)

../_images/Single_Omics_spatial_domain_identification_DLPFC12slices_20_0.png

[12]:

set_seed(7)
graph = prepare_data(adata, location="spatial", nb_neighbors=16).to(device)
input_dim1 = graph.express.shape[-1]
model = extractMODEL(args=None,input_dim=input_dim1)
optimizer = optim.Adam(model.parameters(), lr=0.001)
best_model, min_loss = train_graph_extractor(graph, model, optimizer, device,epochs=1150)

Epoch 1150/1150, Loss: 0.718978, Min Loss: 0.718896

[13]:

with torch.no_grad():
    model.eval()
    z= model.get_features(graph)
    decoded_features = model.decode(z)
    gene_expression_matrix = decoded_features.cpu().squeeze(0).detach().numpy()
adata.obsm['3d-OT']=gene_expression_matrix

[14]:

clustering(adata, n_clusters=7, radius=50, key='3d-OT', method='mclust', refinement=True,random=9,n_comp=30)

Using 3d-OT representation for clustering...
fitting ...
  |======================================================================| 100%

[15]:

sc.pl.spatial(adata, img_key="hires", color="3d-OT", alpha=0.5, size=1.3)

../_images/Single_Omics_spatial_domain_identification_DLPFC12slices_24_0.png

[16]:

from sklearn.metrics import adjusted_rand_score,normalized_mutual_info_score
ARI = adjusted_rand_score(adata.obs['truth'], adata.obs['3d-OT'])
NMI = normalized_mutual_info_score(adata.obs['truth'], adata.obs['3d-OT'])
ARI,NMI

[16]:

(0.7028480564311802, 0.7433446134677156)

151675 slice

[17]:

adata=sc.read_visium('/home/dbj/mouse/DLPFC/DLPFC/151675/')
adata.var_names_make_unique()
sc.pp.highly_variable_genes(adata, n_top_genes=3000, flavor='seurat_v3')
adata = adata[:,adata.var.highly_variable]
sc.pp.normalize_total(adata, inplace=True)
sc.pp.log1p(adata)
sc.pp.scale(adata, zero_center=False, max_value=10)

truth = pd.read_csv('/home/dbj/mouse/vision/spatial/DLPFC_annotations/151675_truth.csv', sep='\t', index_col=0)
adata.obs['truth'] = truth.iloc[:,0]
adata = adata[~adata.obs['truth'].isna(), :]
adata.obsm['feat']=adata.X

[18]:

sc.pl.spatial(adata, img_key="hires", color="truth", alpha=0.5, size=1.3)

../_images/Single_Omics_spatial_domain_identification_DLPFC12slices_28_0.png

[19]:

set_seed(15)
graph = prepare_data(adata, location="spatial", nb_neighbors=16).to(device)
input_dim1 = graph.express.shape[-1]
model = extractMODEL(args=None,input_dim=input_dim1)
optimizer = optim.Adam(model.parameters(), lr=0.001)
best_model, min_loss = train_graph_extractor(graph, model, optimizer, device,epochs=1150)

Epoch 1150/1150, Loss: 0.714007, Min Loss: 0.714108

[21]:

with torch.no_grad():
    model.eval()
    z= model.get_features(graph)
    decoded_features = model.decode(z)
    gene_expression_matrix = decoded_features.cpu().squeeze(0).detach().numpy()
adata.obsm['3d-OT']=gene_expression_matrix

[22]:

clustering(adata, n_clusters=7, radius=45, key='3d-OT', method='mclust', refinement=True,random=31,n_comp=40)

Using 3d-OT representation for clustering...
fitting ...
  |======================================================================| 100%

[23]:

sc.pl.spatial(adata, img_key="hires", color="3d-OT", alpha=0.5, size=1.3)

../_images/Single_Omics_spatial_domain_identification_DLPFC12slices_32_0.png

[24]:

from sklearn.metrics import adjusted_rand_score,normalized_mutual_info_score
ARI = adjusted_rand_score(adata.obs['truth'], adata.obs['3d-OT'])
NMI = normalized_mutual_info_score(adata.obs['truth'], adata.obs['3d-OT'])
ARI,NMI

[24]:

(0.6459690560890312, 0.7278819998330281)

151676 slice

[25]:

adata=sc.read_visium('/home/dbj/mouse/DLPFC/DLPFC/151676/')
adata.var_names_make_unique()
sc.pp.highly_variable_genes(adata, n_top_genes=3000, flavor='seurat_v3')
adata = adata[:,adata.var.highly_variable]
sc.pp.normalize_total(adata, inplace=True)
sc.pp.log1p(adata)
sc.pp.scale(adata, zero_center=False, max_value=10)

truth = pd.read_csv('/home/dbj/mouse/vision/spatial/DLPFC_annotations/151676_truth.csv', sep='\t', index_col=0)
adata.obs['truth'] = truth.iloc[:,0]
adata = adata[~adata.obs['truth'].isna(), :]
adata.obsm['feat']=adata.X

[26]:

set_seed(15)
graph = prepare_data(adata, location="spatial", nb_neighbors=16).to(device)
input_dim1 = graph.express.shape[-1]
model = extractMODEL(args=None,input_dim=input_dim1)
optimizer = optim.Adam(model.parameters(), lr=0.001)
best_model, min_loss = train_graph_extractor(graph, model, optimizer, device,epochs=1150)

Epoch 1150/1150, Loss: 0.718553, Min Loss: 0.718643

[27]:

with torch.no_grad():
    model.eval()
    z= model.get_features(graph)
    decoded_features = model.decode(z)
    gene_expression_matrix = decoded_features.cpu().squeeze(0).detach().numpy()
adata.obsm['3d-OT']=gene_expression_matrix

[29]:

clustering(adata, n_clusters=7, radius=50, key='3d-OT', method='mclust', refinement=True,random=24,n_comp=30)

Using 3d-OT representation for clustering...
fitting ...
  |======================================================================| 100%

[30]:

sc.pl.spatial(adata, img_key="hires", color="3d-OT", alpha=0.5, size=1.3)

../_images/Single_Omics_spatial_domain_identification_DLPFC12slices_39_0.png

[31]:

from sklearn.metrics import adjusted_rand_score,normalized_mutual_info_score
ARI = adjusted_rand_score(adata.obs['truth'], adata.obs['3d-OT'])
NMI = normalized_mutual_info_score(adata.obs['truth'], adata.obs['3d-OT'])
ARI,NMI

[31]:

(0.6310955240816976, 0.7131788712754157)

151507 slice

[32]:

adata=sc.read_visium('/home/dbj/mouse/DLPFC/DLPFC/151507/')
adata.var_names_make_unique()
sc.pp.highly_variable_genes(adata, n_top_genes=3000, flavor='seurat_v3')
adata = adata[:,adata.var.highly_variable]
sc.pp.normalize_total(adata, inplace=True)
sc.pp.log1p(adata)
sc.pp.scale(adata, zero_center=False, max_value=10)

truth = pd.read_csv('/home/dbj/mouse/vision/spatial/DLPFC_annotations/151507_truth.csv', sep='\t', index_col=0)
adata.obs['truth'] = truth.iloc[:,0]
adata = adata[~adata.obs['truth'].isna(), :]
adata.obsm['feat']=adata.X

[33]:

set_seed(32)
graph = prepare_data(adata, location="spatial", nb_neighbors=10).to(device)
input_dim1 = graph.express.shape[-1]
model = extractMODEL(args=None,input_dim=input_dim1)
optimizer = optim.Adam(model.parameters(), lr=0.001)
best_model, min_loss = train_graph_extractor(graph, model, optimizer, device,epochs=1500)

Epoch 1500/1500, Loss: 0.695670, Min Loss: 0.695676

[34]:

with torch.no_grad():
    model.eval()
    z= model.get_features(graph)
    decoded_features = model.decode(z)
    gene_expression_matrix = decoded_features.cpu().squeeze(0).detach().numpy()
adata.obsm['3d-OT']=gene_expression_matrix

[36]:

clustering(adata, n_clusters=7, radius=70, key='3d-OT', method='mclust', refinement=True,random=47,n_comp=40)

Using 3d-OT representation for clustering...
fitting ...
  |======================================================================| 100%

[37]:

sc.pl.spatial(adata, img_key="hires", color="3d-OT", alpha=0.5, size=1.3)

../_images/Single_Omics_spatial_domain_identification_DLPFC12slices_46_0.png

[38]:

from sklearn.metrics import adjusted_rand_score,normalized_mutual_info_score
ARI = adjusted_rand_score(adata.obs['truth'], adata.obs['3d-OT'])
NMI = normalized_mutual_info_score(adata.obs['truth'], adata.obs['3d-OT'])
ARI,NMI

[38]:

(0.6429481541625701, 0.724894657369434)

151508 slice

[39]:

adata=sc.read_visium('/home/dbj/mouse/DLPFC/DLPFC/151508/')
adata.var_names_make_unique()
sc.pp.highly_variable_genes(adata, n_top_genes=3000, flavor='seurat_v3')
adata = adata[:,adata.var.highly_variable]
sc.pp.normalize_total(adata, inplace=True)
sc.pp.log1p(adata)
sc.pp.scale(adata, zero_center=False, max_value=10)

truth = pd.read_csv('/home/dbj/mouse/vision/spatial/DLPFC_annotations/151508_truth.csv', sep='\t', index_col=0)
adata.obs['truth'] = truth.iloc[:,0]
adata = adata[~adata.obs['truth'].isna(), :]
adata.obsm['feat']=adata.X

[40]:

set_seed(7)
graph = prepare_data(adata, location="spatial", nb_neighbors=18).to(device)
input_dim1 = graph.express.shape[-1]
model = extractMODEL(args=None,input_dim=input_dim1)
optimizer = optim.Adam(model.parameters(), lr=0.001)
best_model, min_loss = train_graph_extractor(graph, model, optimizer, device,epochs=1150)

Epoch 1150/1150, Loss: 0.697022, Min Loss: 0.697038

[41]:

with torch.no_grad():
    model.eval()
    z= model.get_features(graph)
    decoded_features = model.decode(z)
    gene_expression_matrix = decoded_features.cpu().squeeze(0).detach().numpy()
adata.obsm['3d-OT']=gene_expression_matrix

[42]:

clustering(adata, n_clusters=7, radius=150, key='3d-OT', method='mclust', refinement=True,random=7,n_comp=30)

Using 3d-OT representation for clustering...
fitting ...
  |======================================================================| 100%

[43]:

sc.pl.spatial(adata, img_key="hires", color="3d-OT", alpha=0.5, size=1.3)

../_images/Single_Omics_spatial_domain_identification_DLPFC12slices_53_0.png

[44]:

from sklearn.metrics import adjusted_rand_score,normalized_mutual_info_score
ARI = adjusted_rand_score(adata.obs['truth'], adata.obs['3d-OT'])
NMI = normalized_mutual_info_score(adata.obs['truth'], adata.obs['3d-OT'])
ARI,NMI

[44]:

(0.63927519123311, 0.6763409724698999)

151509 slice

[45]:

adata=sc.read_visium('/home/dbj/mouse/DLPFC/DLPFC/151509/')
adata.var_names_make_unique()
sc.pp.highly_variable_genes(adata, n_top_genes=3000, flavor='seurat_v3')
adata = adata[:,adata.var.highly_variable]
sc.pp.normalize_total(adata, inplace=True)
sc.pp.log1p(adata)
sc.pp.scale(adata, zero_center=False, max_value=10)

truth = pd.read_csv('/home/dbj/mouse/vision/spatial/DLPFC_annotations/151509_truth.csv', sep='\t', index_col=0)
adata.obs['truth'] = truth.iloc[:,0]
adata = adata[~adata.obs['truth'].isna(), :]
adata.obsm['feat']=adata.X

[46]:

set_seed(7)
graph = prepare_data(adata, location="spatial", nb_neighbors=20).to(device)
input_dim1 = graph.express.shape[-1]
model = extractMODEL(args=None,input_dim=input_dim1)
optimizer = optim.Adam(model.parameters(), lr=0.001)
best_model, min_loss = train_graph_extractor(graph, model, optimizer, device,epochs=1150)

Epoch 1150/1150, Loss: 0.709234, Min Loss: 0.708868

[47]:

with torch.no_grad():
    model.eval()
    z= model.get_features(graph)
    decoded_features = model.decode(z)
    gene_expression_matrix = decoded_features.cpu().squeeze(0).detach().numpy()
adata.obsm['3d-OT']=gene_expression_matrix

[48]:

clustering(adata, n_clusters=7, radius=20, key='3d-OT', method='mclust', refinement=True,random=42,n_comp=40)

Using 3d-OT representation for clustering...
fitting ...
  |======================================================================| 100%

[49]:

sc.pl.spatial(adata, img_key="hires", color="3d-OT", alpha=0.5, size=1.3)

../_images/Single_Omics_spatial_domain_identification_DLPFC12slices_60_0.png

[50]:

from sklearn.metrics import adjusted_rand_score,normalized_mutual_info_score
ARI = adjusted_rand_score(adata.obs['truth'], adata.obs['3d-OT'])
NMI = normalized_mutual_info_score(adata.obs['truth'], adata.obs['3d-OT'])
ARI,NMI

[50]:

(0.6850812804724349, 0.7180048814116741)

151510 slice

[51]:

adata=sc.read_visium('/home/dbj/mouse/DLPFC/DLPFC/151510/')
adata.var_names_make_unique()
sc.pp.highly_variable_genes(adata, n_top_genes=3000, flavor='seurat_v3')
adata = adata[:,adata.var.highly_variable]
sc.pp.normalize_total(adata, inplace=True)
sc.pp.log1p(adata)
sc.pp.scale(adata, zero_center=False, max_value=10)

truth = pd.read_csv('/home/dbj/mouse/vision/spatial/DLPFC_annotations/151510_truth.csv', sep='\t', index_col=0)
adata.obs['truth'] = truth.iloc[:,0]
adata = adata[~adata.obs['truth'].isna(), :]
adata.obsm['feat']=adata.X

[52]:

set_seed(7)
graph = prepare_data(adata, location="spatial", nb_neighbors=16).to(device)
input_dim1 = graph.express.shape[-1]
model = extractMODEL(args=None,input_dim=input_dim1)
optimizer = optim.Adam(model.parameters(), lr=0.001)
best_model, min_loss = train_graph_extractor(graph, model, optimizer, device,epochs=1150)

Epoch 1150/1150, Loss: 0.693114, Min Loss: 0.693208

[53]:

with torch.no_grad():
    model.eval()
    z= model.get_features(graph)
    decoded_features = model.decode(z)
    gene_expression_matrix = decoded_features.cpu().squeeze(0).detach().numpy()
adata.obsm['3d-OT']=gene_expression_matrix

[54]:

clustering(adata, n_clusters=7, radius=50, key='3d-OT', method='mclust', refinement=True,random=2,n_comp=30)

Using 3d-OT representation for clustering...
fitting ...
  |======================================================================| 100%

[55]:

sc.pl.spatial(adata, img_key="hires", color="3d-OT", alpha=0.5, size=1.3)

../_images/Single_Omics_spatial_domain_identification_DLPFC12slices_67_0.png

[56]:

from sklearn.metrics import adjusted_rand_score,normalized_mutual_info_score
ARI = adjusted_rand_score(adata.obs['truth'], adata.obs['3d-OT'])
NMI = normalized_mutual_info_score(adata.obs['truth'], adata.obs['3d-OT'])
ARI,NMI

[56]:

(0.6219086058402626, 0.6800061169876953)

151669 slice

[3]:

adata=sc.read_visium('/home/dbj/mouse/DLPFC/DLPFC/151669/')
adata.var_names_make_unique()
sc.pp.highly_variable_genes(adata, n_top_genes=3000, flavor='seurat_v3')
adata = adata[:,adata.var.highly_variable]
sc.pp.normalize_total(adata, inplace=True)
sc.pp.log1p(adata)
sc.pp.scale(adata, zero_center=False, max_value=10)

truth = pd.read_csv('/home/dbj/mouse/vision/spatial/DLPFC_annotations/151669_truth.csv', sep='\t', index_col=0)
adata.obs['truth'] = truth.iloc[:,0]
adata = adata[~adata.obs['truth'].isna(), :]
adata.obsm['feat']=adata.X

[4]:

set_seed(7)
graph = prepare_data(adata, location="spatial", nb_neighbors=16).to(device)
input_dim1 = graph.express.shape[-1]
model = extractMODEL(args=None,input_dim=input_dim1)
optimizer = optim.Adam(model.parameters(), lr=0.001)
best_model, min_loss = train_graph_extractor(graph, model, optimizer, device,epochs=1150)

Epoch 1150/1150, Loss: 0.714648, Min Loss: 0.714807

[5]:

with torch.no_grad():
    model.eval()
    z= model.get_features(graph)
    decoded_features = model.decode(z)
    gene_expression_matrix = decoded_features.cpu().squeeze(0).detach().numpy()
adata.obsm['3d-OT']=gene_expression_matrix

[6]:

clustering(adata, n_clusters=5, radius=50, key='3d-OT', method='mclust', refinement=True,random=6,n_comp=40)

Using 3d-OT representation for clustering...
fitting ...
  |======================================================================| 100%

[7]:

sc.pl.spatial(adata, img_key="hires", color="3d-OT", alpha=0.5, size=1.3)

../_images/Single_Omics_spatial_domain_identification_DLPFC12slices_74_0.png

[8]:

from sklearn.metrics import adjusted_rand_score,normalized_mutual_info_score
ARI = adjusted_rand_score(adata.obs['truth'], adata.obs['3d-OT'])
NMI = normalized_mutual_info_score(adata.obs['truth'], adata.obs['3d-OT'])
ARI,NMI

[8]:

(0.6835502280197584, 0.6791096322579064)

151670 slice

[9]:

adata=sc.read_visium('/home/dbj/mouse/DLPFC/DLPFC/151670/')
adata.var_names_make_unique()
sc.pp.highly_variable_genes(adata, n_top_genes=3000, flavor='seurat_v3')
adata = adata[:,adata.var.highly_variable]
sc.pp.normalize_total(adata, inplace=True)
sc.pp.log1p(adata)
sc.pp.scale(adata, zero_center=False, max_value=10)

truth = pd.read_csv('/home/dbj/mouse/vision/spatial/DLPFC_annotations/151670_truth.csv', sep='\t', index_col=0)
adata.obs['truth'] = truth.iloc[:,0]
adata = adata[~adata.obs['truth'].isna(), :]
adata.obsm['feat']=adata.X

[10]:

set_seed(7)
graph = prepare_data(adata, location="spatial", nb_neighbors=16).to(device)
input_dim1 = graph.express.shape[-1]
model = extractMODEL(args=None,input_dim=input_dim1)
optimizer = optim.Adam(model.parameters(), lr=0.001)
best_model, min_loss = train_graph_extractor(graph, model, optimizer, device,epochs=1150)

Epoch 1150/1150, Loss: 0.717278, Min Loss: 0.717233

[11]:

with torch.no_grad():
    model.eval()
    z= model.get_features(graph)
    decoded_features = model.decode(z)
    gene_expression_matrix = decoded_features.cpu().squeeze(0).detach().numpy()
adata.obsm['3d-OT']=gene_expression_matrix

[12]:

clustering(adata, n_clusters=5, radius=50, key='3d-OT', method='mclust', refinement=True,random=9,n_comp=40)

Using 3d-OT representation for clustering...
fitting ...
  |======================================================================| 100%

[13]:

sc.pl.spatial(adata, img_key="hires", color="3d-OT", alpha=0.5, size=1.3)

../_images/Single_Omics_spatial_domain_identification_DLPFC12slices_81_0.png

[14]:

from sklearn.metrics import adjusted_rand_score,normalized_mutual_info_score
ARI = adjusted_rand_score(adata.obs['truth'], adata.obs['3d-OT'])
NMI = normalized_mutual_info_score(adata.obs['truth'], adata.obs['3d-OT'])
ARI,NMI

[14]:

(0.6332187919483075, 0.6069832150365367)

151671 slice

[15]:

adata=sc.read_visium('/home/dbj/mouse/DLPFC/DLPFC/151671/')
adata.var_names_make_unique()
sc.pp.highly_variable_genes(adata, n_top_genes=3000, flavor='seurat_v3')
adata = adata[:,adata.var.highly_variable]
sc.pp.normalize_total(adata, inplace=True)
sc.pp.log1p(adata)
sc.pp.scale(adata, zero_center=False, max_value=10)

truth = pd.read_csv('/home/dbj/mouse/vision/spatial/DLPFC_annotations/151671_truth.csv', sep='\t', index_col=0)
adata.obs['truth'] = truth.iloc[:,0]
adata = adata[~adata.obs['truth'].isna(), :]
adata.obsm['feat']=adata.X

[16]:

set_seed(7)
graph = prepare_data(adata, location="spatial", nb_neighbors=36).to(device)
input_dim1 = graph.express.shape[-1]
model = extractMODEL(args=None,input_dim=input_dim1)
optimizer = optim.Adam(model.parameters(), lr=0.001)
best_model, min_loss = train_graph_extractor(graph, model, optimizer, device,epochs=1150)

Epoch 1150/1150, Loss: 0.705453, Min Loss: 0.705474

[17]:

with torch.no_grad():
    model.eval()
    z= model.get_features(graph)
    decoded_features = model.decode(z)
    gene_expression_matrix = decoded_features.cpu().squeeze(0).detach().numpy()
adata.obsm['3d-OT']=gene_expression_matrix

[18]:

clustering(adata, n_clusters=5, radius=110, key='3d-OT', method='mclust', refinement=True,random=5,n_comp=40)

Using 3d-OT representation for clustering...
fitting ...
  |======================================================================| 100%

[19]:

sc.pl.spatial(adata, img_key="hires", color="3d-OT", alpha=0.5, size=1.3)

../_images/Single_Omics_spatial_domain_identification_DLPFC12slices_88_0.png

[20]:

from sklearn.metrics import adjusted_rand_score,normalized_mutual_info_score
ARI = adjusted_rand_score(adata.obs['truth'], adata.obs['3d-OT'])
NMI = normalized_mutual_info_score(adata.obs['truth'], adata.obs['3d-OT'])
ARI,NMI

[20]:

(0.8486307773696931, 0.804415974551904)

151672 slice

[21]:

adata=sc.read_visium('/home/dbj/mouse/DLPFC/DLPFC/151672/')
adata.var_names_make_unique()
sc.pp.highly_variable_genes(adata, n_top_genes=3000, flavor='seurat_v3')
adata = adata[:,adata.var.highly_variable]
sc.pp.normalize_total(adata, inplace=True)
sc.pp.log1p(adata)
sc.pp.scale(adata, zero_center=False, max_value=10)

truth = pd.read_csv('/home/dbj/mouse/vision/spatial/DLPFC_annotations/151672_truth.csv', sep='\t', index_col=0)
adata.obs['truth'] = truth.iloc[:,0]
adata = adata[~adata.obs['truth'].isna(), :]
adata.obsm['feat']=adata.X

[22]:

set_seed(7)
graph = prepare_data(adata, location="spatial", nb_neighbors=16).to(device)
input_dim1 = graph.express.shape[-1]
model = extractMODEL(args=None,input_dim=input_dim1)
optimizer = optim.Adam(model.parameters(), lr=0.001)
best_model, min_loss = train_graph_extractor(graph, model, optimizer, device,epochs=1150)

Epoch 1150/1150, Loss: 0.711288, Min Loss: 0.711311

[23]:

with torch.no_grad():
    model.eval()
    z= model.get_features(graph)
    decoded_features = model.decode(z)
    gene_expression_matrix = decoded_features.cpu().squeeze(0).detach().numpy()
adata.obsm['3d-OT']=gene_expression_matrix

[24]:

clustering(adata, n_clusters=5, radius=110, key='3d-OT', method='mclust', refinement=True,random=3,n_comp=50)

Using 3d-OT representation for clustering...
fitting ...
  |======================================================================| 100%

[25]:

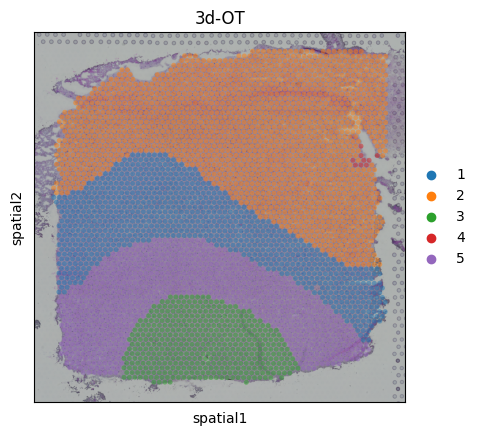

sc.pl.spatial(adata, img_key="hires", color="3d-OT", alpha=0.5, size=1.3)

../_images/Single_Omics_spatial_domain_identification_DLPFC12slices_95_0.png

[26]:

from sklearn.metrics import adjusted_rand_score,normalized_mutual_info_score
ARI = adjusted_rand_score(adata.obs['truth'], adata.obs['3d-OT'])
NMI = normalized_mutual_info_score(adata.obs['truth'], adata.obs['3d-OT'])
ARI,NMI

[26]:

(0.7979786569154225, 0.7719936179336607)
