Spatial multi-omics Clustering Demonstration of five simulated data

In this Tutorial, we demonstrate how to use 3d-OT to obtain the clustering results of five multi-omics simulated data.
Five simulated data consisting of two omics that together contained the information of the ground truth.
The omics were designed to simulate the transcriptome, and proteome respectively.

Loading package

[1]:

from lib_3d_OT.utils import *
import scanpy as sc
import numpy as np
import pandas as pd
import torch
from lib_3d_OT.multi_modialty import *
import torch.optim as optim
import warnings
warnings.filterwarnings("ignore")

During startup - Warning messages:
1: package ‘methods’ was built under R version 4.3.2
2: package ‘datasets’ was built under R version 4.3.2
3: package ‘utils’ was built under R version 4.3.2
4: package ‘grDevices’ was built under R version 4.3.2
5: package ‘graphics’ was built under R version 4.3.2
6: package ‘stats’ was built under R version 4.3.2
R[write to console]:                    __           __
   ____ ___  _____/ /_  _______/ /_
  / __ `__ \/ ___/ / / / / ___/ __/
 / / / / / / /__/ / /_/ (__  ) /_
/_/ /_/ /_/\___/_/\__,_/____/\__/   version 6.1.1
Type 'citation("mclust")' for citing this R package in publications.

[ ]:

device = torch.device("cuda:1" if torch.cuda.is_available() else "cpu")

Loading Simulation data1

[3]:

file_fold1 = '/home/dbj/mouse/spatialglue_alldata/Dataset13_Simulation1/' #please replace 'file_fold' with the download path

adata_omics1 = sc.read_h5ad(file_fold1 + 'adata_RNA.h5ad')
adata_omics2 = sc.read_h5ad(file_fold1 + 'adata_ADT.h5ad')
adata_omics1.var_names_make_unique()
adata_omics2.var_names_make_unique()

[4]:

adata_omics1.obs['ground_truth'] = 1*np.array(adata_omics1.obsm['spfac'][:,0] + 2*adata_omics1.obsm['spfac'][:,1] + 3*adata_omics1.obsm['spfac'][:,2] + 4*adata_omics1.obsm['spfac'][:,3])
adata_omics1.obs['truth'] = adata_omics1.obs['ground_truth']
adata_omics1.obs['truth'].replace({1.0:'factor1',
                                   2.0:'factor2',
                                   3.0:'factor3',
                                   4.0:'factor4',
                                   0.0:'backgr'  #'backgr' means background.
                                              }, inplace=True)

list_ = ['factor1','factor2','factor3','factor4','backgr']
adata_omics1.obs['truth']  = pd.Categorical(adata_omics1.obs['truth'],
                      categories=list_,
                      ordered=True)
adata_omics2.obs['truth']=adata_omics1.obs['truth']

3d-OT adopts standard pre-processing steps for the transcriptomic, and protein data.

Specifically, for the transcriptomics data, the gene expression counts are log-transformed and normalized by library size via the SCANPY package. The top 3,000 highly variable genes (HVGs) are selected as input of PCA for dimension reduction.
The protein expresssion counts are normliazed using CLR (Centered Log Ratio).

[5]:

n_protein = adata_omics2.n_vars

sc.pp.highly_variable_genes(adata_omics1, flavor="seurat_v3", n_top_genes=3000)
sc.pp.normalize_total(adata_omics1, target_sum=1e4)
sc.pp.log1p(adata_omics1)

adata_omics1_high =  adata_omics1[:, adata_omics1.var['highly_variable']]
adata_omics1.obsm['feat'] = pca(adata_omics1_high, n_comps=n_protein)

# Protein
adata_omics2 = clr_normalize_each_cell(adata_omics2)
adata_omics2.obsm['feat'] = pca(adata_omics2, n_comps=n_protein)

WARNING: adata.X seems to be already log-transformed.

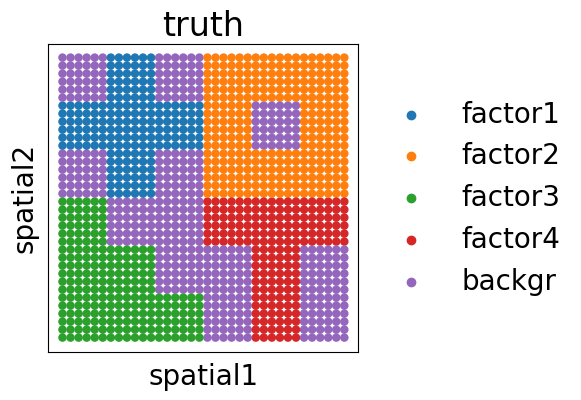

The ground truth of simulated data

[8]:

import matplotlib.pyplot as plt
import copy
plt.rcParams['figure.figsize'] = (4,4)
plt.rcParams['font.size'] = 20

fig, ax = plt.subplots()
sc.pl.embedding(adata_omics1,basis='spatial',color='truth',size=150,ax=ax)

../_images/Multi_Omics_spatial_domain_identification_simulated_10_0.png

Constructing the neighbor graph and training the PointNet++ Encoder

[12]:

set_seed(7)
graph1 = prepare_data(adata_omics1, location="spatial", nb_neighbors=16).to(device)
graph2 = prepare_data(adata_omics2, location="spatial", nb_neighbors=16).to(device)
input_dim = graph1.express.shape[-1]
hidden_dim=32
model = extractModel(input_dim,hidden_dim,n_heads=4, n_layers=3)
model = model.to(device)
optimizer = optim.Adam(model.parameters(), lr=0.001)
start_time = time.time()
best_model = train_graph_extractor(graph1,graph2, model ,optimizer, device,epochs=600)

Epoch 600/600, Loss: 4.4015, Loss1: 4.1048, Loss2: 0.2966

Get multi-omics integrated representation `mixed_modal_features`

[13]:

with torch.no_grad():
    MODEL=extractModel(input_dim=input_dim,hidden_dim=hidden_dim)
    MODEL.to(device)
    MODEL.load_state_dict(best_model)
    MODEL.eval()
    recon1, recon2,mixed_modal_features = MODEL(graph1, graph2)
    mixed_modal_features = mixed_modal_features.squeeze(0)
    gene_expression_matrix = mixed_modal_features.cpu().detach().numpy()
adata_omics1.obsm['3d-OT']=gene_expression_matrix

We use mclust for clustering

[15]:

clustering(adata_omics1, n_clusters=5,key='3d-OT', method='mclust',random=2024,n_comp=20)

Using 3d-OT representation for clustering...
fitting ...
  |======================================================================| 100%

The Simulation 1 data clustering results

[16]:

import matplotlib.pyplot as plt
import copy
plt.rcParams['figure.figsize'] = (4,4)
plt.rcParams['font.size'] = 20

fig, ax = plt.subplots()
sc.pl.embedding(adata_omics1,basis='spatial',color='3d-OT',size=150,ax=ax)

../_images/Multi_Omics_spatial_domain_identification_simulated_18_0.png

Calculation of six evaluation indicators

[17]:

import numpy as np
from sklearn.metrics import (homogeneity_score,mutual_info_score,v_measure_score,adjusted_mutual_info_score,normalized_mutual_info_score,adjusted_rand_score
)

true_labels = np.array(adata_omics1.obs['truth'])
cluster_labels = np.array(adata_omics1.obs['3d-OT'])

homogeneity = homogeneity_score(true_labels, cluster_labels)
mutual_info = mutual_info_score(true_labels, cluster_labels)
v_measure = v_measure_score(true_labels, cluster_labels)
ami = adjusted_mutual_info_score(true_labels, cluster_labels)
nmi = normalized_mutual_info_score(true_labels, cluster_labels)
ari = adjusted_rand_score(true_labels, cluster_labels)

print("Homogeneity:", homogeneity)
print("Mutual Information:", mutual_info)
print("V-Measure:", v_measure)
print("AMI:", ami)
print("NMI:", nmi)
print("ARI:", ari)

Homogeneity: 0.9865381411532754
Mutual Information: 1.5265947069620323
V-Measure: 0.9867838115364901
AMI: 0.9867305499284305
NMI: 0.9867838115364901
ARI: 0.991938023457151

Simulation Data 2

[18]:

file_fold1 = '/home/dbj/mouse/spatialglue_alldata/Dataset14_Simulation2/' #please replace 'file_fold' with the download path

adata_omics1 = sc.read_h5ad(file_fold1 + 'adata_RNA.h5ad')
adata_omics2 = sc.read_h5ad(file_fold1 + 'adata_ADT.h5ad')
adata_omics1.var_names_make_unique()
adata_omics2.var_names_make_unique()
adata_omics1.obs['ground_truth'] = 1*np.array(adata_omics1.obsm['spfac'][:,0] + 2*adata_omics1.obsm['spfac'][:,1] + 3*adata_omics1.obsm['spfac'][:,2] + 4*adata_omics1.obsm['spfac'][:,3])
adata_omics1.obs['truth'] = adata_omics1.obs['ground_truth']
adata_omics1.obs['truth'].replace({1.0:'factor1',
                                   2.0:'factor2',
                                   3.0:'factor3',
                                   4.0:'factor4',
                                   0.0:'backgr'  #'backgr' means background.
                                              }, inplace=True)

list_ = ['factor1','factor2','factor3','factor4','backgr']
adata_omics1.obs['truth']  = pd.Categorical(adata_omics1.obs['truth'],
                      categories=list_,
                      ordered=True)
adata_omics2.obs['truth']=adata_omics1.obs['truth']

[20]:

n_protein = adata_omics2.n_vars
sc.pp.highly_variable_genes(adata_omics1, flavor="seurat_v3", n_top_genes=3000)
sc.pp.normalize_total(adata_omics1, target_sum=1e4)
sc.pp.log1p(adata_omics1)
adata_omics1_high =  adata_omics1[:, adata_omics1.var['highly_variable']]
adata_omics1.obsm['feat'] = pca(adata_omics1_high, n_comps=n_protein)

# Protein
adata_omics2 = clr_normalize_each_cell(adata_omics2)
adata_omics2.obsm['feat'] = pca(adata_omics2, n_comps=n_protein)

WARNING: adata.X seems to be already log-transformed.

[21]:

set_seed(7)
graph1 = prepare_data(adata_omics1, location="spatial", nb_neighbors=16).to(device)
graph2 = prepare_data(adata_omics2, location="spatial", nb_neighbors=16).to(device)
input_dim = graph1.express.shape[-1]
hidden_dim=32
model = extractModel(input_dim,hidden_dim,n_heads=4, n_layers=3)
model = model.to(device)
optimizer = optim.Adam(model.parameters(), lr=0.001)
start_time = time.time()
best_model = train_graph_extractor(graph1,graph2, model ,optimizer, device,epochs=600)

Epoch 600/600, Loss: 4.4680, Loss1: 4.1811, Loss2: 0.2869

[22]:

with torch.no_grad():
    MODEL=extractModel(input_dim=input_dim,hidden_dim=hidden_dim)
    MODEL.to(device)
    MODEL.load_state_dict(best_model)
    MODEL.eval()
    recon1, recon2,mixed_modal_features = MODEL(graph1, graph2)
    mixed_modal_features = mixed_modal_features.squeeze(0)
    gene_expression_matrix = mixed_modal_features.cpu().detach().numpy()
adata_omics1.obsm['3d-OT']=gene_expression_matrix

[23]:

clustering(adata_omics1, n_clusters=5,key='3d-OT', method='mclust',random=2024,n_comp=20)

Using 3d-OT representation for clustering...
fitting ...
  |======================================================================| 100%

[24]:

import matplotlib.pyplot as plt
import copy
plt.rcParams['figure.figsize'] = (4,4)
plt.rcParams['font.size'] = 20

fig, ax = plt.subplots()
sc.pl.embedding(adata_omics1,basis='spatial',color='3d-OT',size=150,ax=ax)

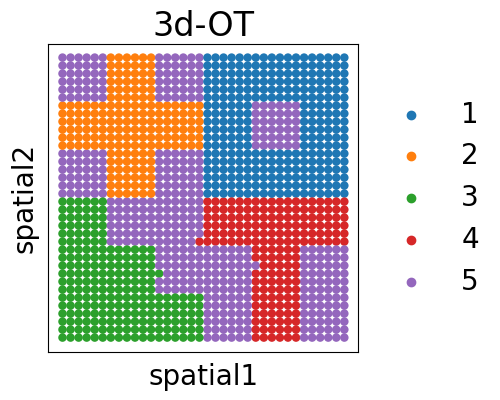

../_images/Multi_Omics_spatial_domain_identification_simulated_27_0.png

[25]:

import numpy as np
from sklearn.metrics import (homogeneity_score,mutual_info_score,v_measure_score,adjusted_mutual_info_score,normalized_mutual_info_score,adjusted_rand_score
)

true_labels = np.array(adata_omics1.obs['truth'])
cluster_labels = np.array(adata_omics1.obs['3d-OT'])

homogeneity = homogeneity_score(true_labels, cluster_labels)
mutual_info = mutual_info_score(true_labels, cluster_labels)
v_measure = v_measure_score(true_labels, cluster_labels)
ami = adjusted_mutual_info_score(true_labels, cluster_labels)
nmi = normalized_mutual_info_score(true_labels, cluster_labels)
ari = adjusted_rand_score(true_labels, cluster_labels)

print("Homogeneity:", homogeneity)
print("Mutual Information:", mutual_info)
print("V-Measure:", v_measure)
print("AMI:", ami)
print("NMI:", nmi)
print("ARI:", ari)

Homogeneity: 0.9902103899455713
Mutual Information: 1.532277239988493
V-Measure: 0.9900401528982221
AMI: 0.9900000318982815
NMI: 0.9900401528982222
ARI: 0.9936498748034039

Simulation Data 3

[26]:

file_fold1 = '/home/dbj/mouse/spatialglue_alldata/Dataset15_Simulation3/' #please replace 'file_fold' with the download path

adata_omics1 = sc.read_h5ad(file_fold1 + 'adata_RNA.h5ad')
adata_omics2 = sc.read_h5ad(file_fold1 + 'adata_ADT.h5ad')
adata_omics1.var_names_make_unique()
adata_omics2.var_names_make_unique()
adata_omics1.obs['ground_truth'] = 1*np.array(adata_omics1.obsm['spfac'][:,0] + 2*adata_omics1.obsm['spfac'][:,1] + 3*adata_omics1.obsm['spfac'][:,2] + 4*adata_omics1.obsm['spfac'][:,3])
adata_omics1.obs['truth'] = adata_omics1.obs['ground_truth']
adata_omics1.obs['truth'].replace({1.0:'factor1',
                                   2.0:'factor2',
                                   3.0:'factor3',
                                   4.0:'factor4',
                                   0.0:'backgr'  #'backgr' means background.
                                              }, inplace=True)

list_ = ['factor1','factor2','factor3','factor4','backgr']
adata_omics1.obs['truth']  = pd.Categorical(adata_omics1.obs['truth'],
                      categories=list_,
                      ordered=True)
adata_omics2.obs['truth']=adata_omics1.obs['truth']

[27]:

n_protein = adata_omics2.n_vars
sc.pp.highly_variable_genes(adata_omics1, flavor="seurat_v3", n_top_genes=3000)
sc.pp.normalize_total(adata_omics1, target_sum=1e4)
sc.pp.log1p(adata_omics1)
adata_omics1_high =  adata_omics1[:, adata_omics1.var['highly_variable']]
adata_omics1.obsm['feat'] = pca(adata_omics1_high, n_comps=n_protein)

# Protein
adata_omics2 = clr_normalize_each_cell(adata_omics2)
adata_omics2.obsm['feat'] = pca(adata_omics2, n_comps=n_protein)

WARNING: adata.X seems to be already log-transformed.

[28]:

set_seed(7)
graph1 = prepare_data(adata_omics1, location="spatial", nb_neighbors=16).to(device)
graph2 = prepare_data(adata_omics2, location="spatial", nb_neighbors=16).to(device)
input_dim = graph1.express.shape[-1]
hidden_dim=32
model = extractModel(input_dim,hidden_dim,n_heads=4, n_layers=3)
model = model.to(device)
optimizer = optim.Adam(model.parameters(), lr=0.001)
start_time = time.time()
best_model = train_graph_extractor(graph1,graph2, model ,optimizer, device,epochs=600)

Epoch 600/600, Loss: 4.6400, Loss1: 4.3630, Loss2: 0.2770

[29]:

with torch.no_grad():
    MODEL=extractModel(input_dim=input_dim,hidden_dim=hidden_dim)
    MODEL.to(device)
    MODEL.load_state_dict(best_model)
    MODEL.eval()
    recon1, recon2,mixed_modal_features = MODEL(graph1, graph2)
    mixed_modal_features = mixed_modal_features.squeeze(0)
    gene_expression_matrix = mixed_modal_features.cpu().detach().numpy()
adata_omics1.obsm['3d-OT']=gene_expression_matrix

[30]:

clustering(adata_omics1, n_clusters=5,key='3d-OT', method='mclust',random=2024,n_comp=20)

Using 3d-OT representation for clustering...
fitting ...
  |======================================================================| 100%

[31]:

import matplotlib.pyplot as plt
import copy
plt.rcParams['figure.figsize'] = (4,4)
plt.rcParams['font.size'] = 20

fig, ax = plt.subplots()
sc.pl.embedding(adata_omics1,basis='spatial',color='3d-OT',size=150,ax=ax)

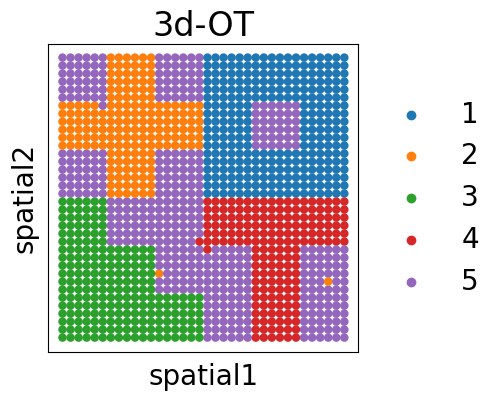

../_images/Multi_Omics_spatial_domain_identification_simulated_35_0.png

[32]:

import numpy as np
from sklearn.metrics import (homogeneity_score,mutual_info_score,v_measure_score,adjusted_mutual_info_score,normalized_mutual_info_score,adjusted_rand_score
)

true_labels = np.array(adata_omics1.obs['truth'])
cluster_labels = np.array(adata_omics1.obs['3d-OT'])

homogeneity = homogeneity_score(true_labels, cluster_labels)
mutual_info = mutual_info_score(true_labels, cluster_labels)
v_measure = v_measure_score(true_labels, cluster_labels)
ami = adjusted_mutual_info_score(true_labels, cluster_labels)
nmi = normalized_mutual_info_score(true_labels, cluster_labels)
ari = adjusted_rand_score(true_labels, cluster_labels)

print("Homogeneity:", homogeneity)
print("Mutual Information:", mutual_info)
print("V-Measure:", v_measure)
print("AMI:", ami)
print("NMI:", nmi)
print("ARI:", ari)

Homogeneity: 0.9855043077852927
Mutual Information: 1.524994926394402
V-Measure: 0.984865368285187
AMI: 0.9848044320856825
NMI: 0.9848653682851871
ARI: 0.9896354033132985

Simulation Data 4

[33]:

file_fold1 = '/home/dbj/mouse/spatialglue_alldata/Dataset16_Simulation4/' #please replace 'file_fold' with the download path

adata_omics1 = sc.read_h5ad(file_fold1 + 'adata_RNA.h5ad')
adata_omics2 = sc.read_h5ad(file_fold1 + 'adata_ADT.h5ad')
adata_omics1.var_names_make_unique()
adata_omics2.var_names_make_unique()
adata_omics1.obs['ground_truth'] = 1*np.array(adata_omics1.obsm['spfac'][:,0] + 2*adata_omics1.obsm['spfac'][:,1] + 3*adata_omics1.obsm['spfac'][:,2] + 4*adata_omics1.obsm['spfac'][:,3])
adata_omics1.obs['truth'] = adata_omics1.obs['ground_truth']
adata_omics1.obs['truth'].replace({1.0:'factor1',
                                   2.0:'factor2',
                                   3.0:'factor3',
                                   4.0:'factor4',
                                   0.0:'backgr'  #'backgr' means background.
                                              }, inplace=True)

list_ = ['factor1','factor2','factor3','factor4','backgr']
adata_omics1.obs['truth']  = pd.Categorical(adata_omics1.obs['truth'],
                      categories=list_,
                      ordered=True)
adata_omics2.obs['truth']=adata_omics1.obs['truth']

[34]:

n_protein = adata_omics2.n_vars
sc.pp.highly_variable_genes(adata_omics1, flavor="seurat_v3", n_top_genes=3000)
sc.pp.normalize_total(adata_omics1, target_sum=1e4)
sc.pp.log1p(adata_omics1)
adata_omics1_high =  adata_omics1[:, adata_omics1.var['highly_variable']]
adata_omics1.obsm['feat'] = pca(adata_omics1_high, n_comps=n_protein)

# Protein
adata_omics2 = clr_normalize_each_cell(adata_omics2)
adata_omics2.obsm['feat'] = pca(adata_omics2, n_comps=n_protein)

WARNING: adata.X seems to be already log-transformed.

[35]:

set_seed(7)
graph1 = prepare_data(adata_omics1, location="spatial", nb_neighbors=16).to(device)
graph2 = prepare_data(adata_omics2, location="spatial", nb_neighbors=16).to(device)
input_dim = graph1.express.shape[-1]
hidden_dim=32
model = extractModel(input_dim,hidden_dim,n_heads=4, n_layers=3)
model = model.to(device)
optimizer = optim.Adam(model.parameters(), lr=0.001)
start_time = time.time()
best_model = train_graph_extractor(graph1,graph2, model ,optimizer, device,epochs=600)

Epoch 600/600, Loss: 4.5746, Loss1: 4.3190, Loss2: 0.2556

[36]:

with torch.no_grad():
    MODEL=extractModel(input_dim=input_dim,hidden_dim=hidden_dim)
    MODEL.to(device)
    MODEL.load_state_dict(best_model)
    MODEL.eval()
    recon1, recon2,mixed_modal_features = MODEL(graph1, graph2)
    mixed_modal_features = mixed_modal_features.squeeze(0)
    gene_expression_matrix = mixed_modal_features.cpu().detach().numpy()
adata_omics1.obsm['3d-OT']=gene_expression_matrix

[37]:

clustering(adata_omics1, n_clusters=5,key='3d-OT', method='mclust',random=2024,n_comp=20)

Using 3d-OT representation for clustering...
fitting ...
  |======================================================================| 100%

[38]:

import matplotlib.pyplot as plt
import copy
plt.rcParams['figure.figsize'] = (4,4)
plt.rcParams['font.size'] = 20

fig, ax = plt.subplots()
sc.pl.embedding(adata_omics1,basis='spatial',color='3d-OT',size=150,ax=ax)

../_images/Multi_Omics_spatial_domain_identification_simulated_43_0.png

[39]:

import numpy as np
from sklearn.metrics import (homogeneity_score,mutual_info_score,v_measure_score,adjusted_mutual_info_score,normalized_mutual_info_score,adjusted_rand_score
)

true_labels = np.array(adata_omics1.obs['truth'])
cluster_labels = np.array(adata_omics1.obs['3d-OT'])

homogeneity = homogeneity_score(true_labels, cluster_labels)
mutual_info = mutual_info_score(true_labels, cluster_labels)
v_measure = v_measure_score(true_labels, cluster_labels)
ami = adjusted_mutual_info_score(true_labels, cluster_labels)
nmi = normalized_mutual_info_score(true_labels, cluster_labels)
ari = adjusted_rand_score(true_labels, cluster_labels)

print("Homogeneity:", homogeneity)
print("Mutual Information:", mutual_info)
print("V-Measure:", v_measure)
print("AMI:", ami)
print("NMI:", nmi)
print("ARI:", ari)

Homogeneity: 0.9784479201344716
Mutual Information: 1.5140756891255591
V-Measure: 0.9785418546215845
AMI: 0.9784553911295736
NMI: 0.9785418546215846
ARI: 0.9858705495702517

Simulation Data 5

[40]:

file_fold1 = '/home/dbj/mouse/spatialglue_alldata/Dataset17_Simulation5/' #please replace 'file_fold' with the download path

adata_omics1 = sc.read_h5ad(file_fold1 + 'adata_RNA.h5ad')
adata_omics2 = sc.read_h5ad(file_fold1 + 'adata_ADT.h5ad')
adata_omics1.var_names_make_unique()
adata_omics2.var_names_make_unique()
adata_omics1.obs['ground_truth'] = 1*np.array(adata_omics1.obsm['spfac'][:,0] + 2*adata_omics1.obsm['spfac'][:,1] + 3*adata_omics1.obsm['spfac'][:,2] + 4*adata_omics1.obsm['spfac'][:,3])
adata_omics1.obs['truth'] = adata_omics1.obs['ground_truth']
adata_omics1.obs['truth'].replace({1.0:'factor1',
                                   2.0:'factor2',
                                   3.0:'factor3',
                                   4.0:'factor4',
                                   0.0:'backgr'  #'backgr' means background.
                                              }, inplace=True)

list_ = ['factor1','factor2','factor3','factor4','backgr']
adata_omics1.obs['truth']  = pd.Categorical(adata_omics1.obs['truth'],
                      categories=list_,
                      ordered=True)
adata_omics2.obs['truth']=adata_omics1.obs['truth']

[41]:

n_protein = adata_omics2.n_vars
sc.pp.highly_variable_genes(adata_omics1, flavor="seurat_v3", n_top_genes=3000)
sc.pp.normalize_total(adata_omics1, target_sum=1e4)
sc.pp.log1p(adata_omics1)
adata_omics1_high =  adata_omics1[:, adata_omics1.var['highly_variable']]
adata_omics1.obsm['feat'] = pca(adata_omics1_high, n_comps=n_protein)

# Protein
adata_omics2 = clr_normalize_each_cell(adata_omics2)
adata_omics2.obsm['feat'] = pca(adata_omics2, n_comps=n_protein)

WARNING: adata.X seems to be already log-transformed.

[42]:

set_seed(7)
graph1 = prepare_data(adata_omics1, location="spatial", nb_neighbors=16).to(device)
graph2 = prepare_data(adata_omics2, location="spatial", nb_neighbors=16).to(device)
input_dim = graph1.express.shape[-1]
hidden_dim=32
model = extractModel(input_dim,hidden_dim,n_heads=4, n_layers=3)
model = model.to(device)
optimizer = optim.Adam(model.parameters(), lr=0.001)
start_time = time.time()
best_model = train_graph_extractor(graph1,graph2, model ,optimizer, device,epochs=600)

Epoch 600/600, Loss: 4.4780, Loss1: 4.2473, Loss2: 0.2307

[43]:

with torch.no_grad():
    MODEL=extractModel(input_dim=input_dim,hidden_dim=hidden_dim)
    MODEL.to(device)
    MODEL.load_state_dict(best_model)
    MODEL.eval()
    recon1, recon2,mixed_modal_features = MODEL(graph1, graph2)
    mixed_modal_features = mixed_modal_features.squeeze(0)
    gene_expression_matrix = mixed_modal_features.cpu().detach().numpy()
adata_omics1.obsm['3d-OT']=gene_expression_matrix

[44]:

clustering(adata_omics1, n_clusters=5,key='3d-OT', method='mclust',random=2024,n_comp=20)

Using 3d-OT representation for clustering...
fitting ...
  |======================================================================| 100%

[45]:

import matplotlib.pyplot as plt
import copy
plt.rcParams['figure.figsize'] = (4,4)
plt.rcParams['font.size'] = 20

fig, ax = plt.subplots()
sc.pl.embedding(adata_omics1,basis='spatial',color='3d-OT',size=150,ax=ax)

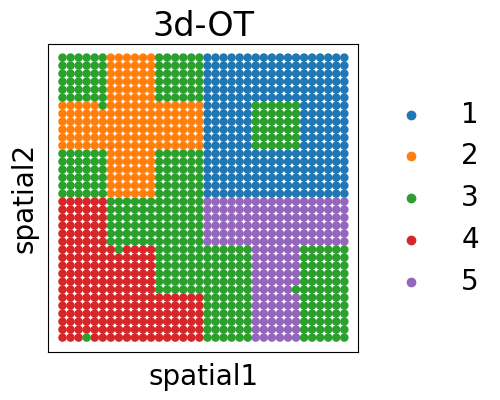

../_images/Multi_Omics_spatial_domain_identification_simulated_51_0.png

[46]:

import numpy as np
from sklearn.metrics import (homogeneity_score,mutual_info_score,v_measure_score,adjusted_mutual_info_score,normalized_mutual_info_score,adjusted_rand_score
)

true_labels = np.array(adata_omics1.obs['truth'])
cluster_labels = np.array(adata_omics1.obs['3d-OT'])

homogeneity = homogeneity_score(true_labels, cluster_labels)
mutual_info = mutual_info_score(true_labels, cluster_labels)
v_measure = v_measure_score(true_labels, cluster_labels)
ami = adjusted_mutual_info_score(true_labels, cluster_labels)
nmi = normalized_mutual_info_score(true_labels, cluster_labels)
ari = adjusted_rand_score(true_labels, cluster_labels)

print("Homogeneity:", homogeneity)
print("Mutual Information:", mutual_info)
print("V-Measure:", v_measure)
print("AMI:", ami)
print("NMI:", nmi)
print("ARI:", ari)

Homogeneity: 0.9865837185639651
Mutual Information: 1.5266652346294518
V-Measure: 0.9873642074944294
AMI: 0.9873132563119057
NMI: 0.9873642074944294
ARI: 0.9914416135115142

Spatial multi-omics Clustering Demonstration of five simulated data

Loading package

Loading Simulation data1

3d-OT adopts standard pre-processing steps for the transcriptomic, and protein data.

The ground truth of simulated data

Constructing the neighbor graph and training the PointNet++ Encoder

Get multi-omics integrated representation mixed_modal_features

We use mclust for clustering

The Simulation 1 data clustering results

Calculation of six evaluation indicators

Simulation Data 2

Simulation Data 3

Simulation Data 4

Simulation Data 5

Get multi-omics integrated representation `mixed_modal_features`
